Winter Air Compressor Dryer Problems & Solutions (2025 Deep Guide)

Intro — A Real Shop Story:

Last winter in India, a small welding shop called us at 7:30 AM:“Brother, the pressure is zero… compressor is running but no air!”When our technician arrived, he didn’t even need tools—the purge valve was frozen into a solid ice block. The dryer couldn’t drain,water backed into the system, and the whole line collapsed.

If you Google “air compressor dryer problems winter”, most results are:

• brand FAQs.

• sales pages.

• manuals.

None tells you where exactly it freezes, why, and what to do in 5 minutes.
This guide fills that gap.

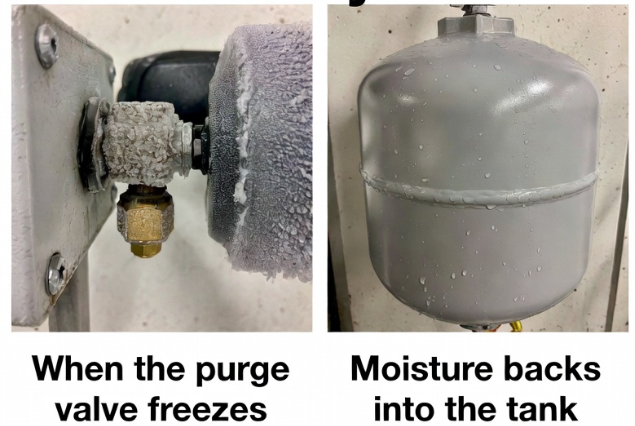

1. Purge Valve Frozen → Pressure Drops to Zero (Most Common!)

This is the No.1 winter dryer failure worldwide.

When the purge valve freezes:

• dryer cannot expel water.

• moisture backs into the tank.

• pressure drops from 8 bar → 0 bar.

• compressor keeps running but no usable air.

2.How to Unfreeze in 5 Minutes?

• Turn OFF compressor.

• Pour hot water (not boiling) on purge valve.

• Drain accumulated water.

• Restart dryer → compressor.

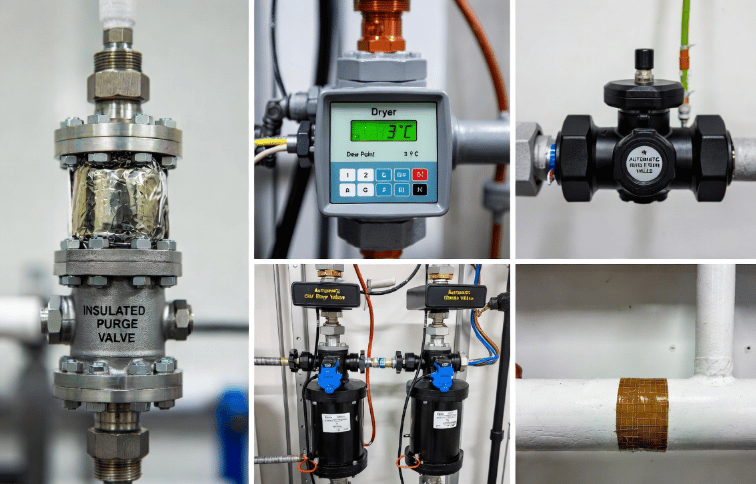

3.How to Prevent Purge Valve Freezing (Long-Term)?

• Insulate purge valve body.

• Raise dryer dew point setting.

• Install automatic drain with heater.

• Replace old Chinese dryers.

• Add heat trace tape.

4.Auto Drain Frozen – Tank Pressure Rises Dangerously:

Why Auto Drains Freeze in Winter?

The auto drain contains residual water. When temperature drops, the drain outlet freezes and blocks water discharge. Tank pressure begins to rise abnormally—this is extremely dangerous.

Symptoms

• Tank pressure 10–12 bar (higher than normal).

• No water coming from drain.

• Dryer showing high differential pressure.

• Frequent over-pressure alarms.

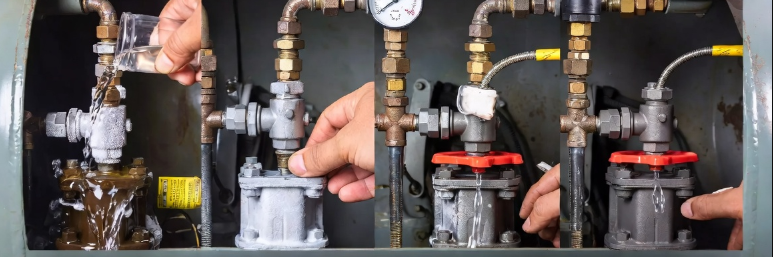

Air compressor dryer drain frozen what to do?

• Defrost using warm water.

• Replace drain valve rubber.

• Install heated drain (best for India / SEA winter).

• Daily manual draining during cold season.

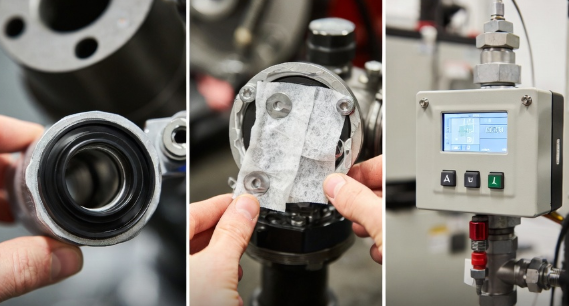

5.Solenoid Valve Frozen – Dryer Keeps Unloading / Low Pressure:

Why the Solenoid Valve Freezes?

During winter nights, moisture inside the solenoid valve coil and plunger freezes.
When frozen, the valve cannot switch positions, causing:

• Dryer keeps unloading

• Pressure stays low.

• System cannot reach 6–8 bar.

• Refrigerated air dryer freeze up alerts.

Symptoms:

• Dryer keeps venting air.

• Solenoid valve buzzing sound.

• Dryer never loads fully.

• Low outlet temperature, then freeze-up.

Fix Options:

• Warm up solenoid with heat gun (low heat).

• Replace coil rubber seal.

• Add insulation cloth.

• Ensure dryer dew point is not below ambient.

6.Air Pipes Freeze & Burst – “BANG!” Water Everywhere:

Why Pipes Burst in Winter:

If water is not removed properly, residual moisture in compressed air lines freezes at night.
Ice expansion causes:

• Pipe swelling.

• Joint cracking.

• Sudden pipe burst (“BANG!”).

• Complete loss of air supply.

  Fixes:

• Replace broken section.

• Install moisture separator before dryer.

• Add pipe slope towards drain.

• Use aluminum or stainless steel piping.

7.Compressor Oil Thick Like Honey – Hard to Start:

Why Oil Thickens:

Cold weather increases oil viscosity.
If the oil is not winter-grade:

• Startup becomes heavy.

• Overload relay trips.

• Dryer cannot reach operating temperature.

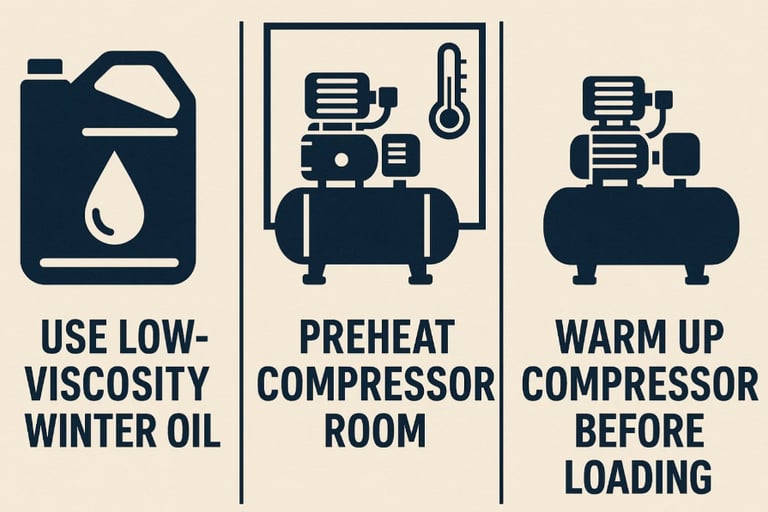

Fix:

• Use low-viscosity winter oil.

• Preheat compressor room.

• Warm up compressor before loading.

8.Morning Cannot Start → Control Board Wet:

Root Cause:

Humidity from the dryer condenses onto the control board overnight.
This causes:

• Short circuits.

• Dryer cannot start.

• LCD screen flickering.

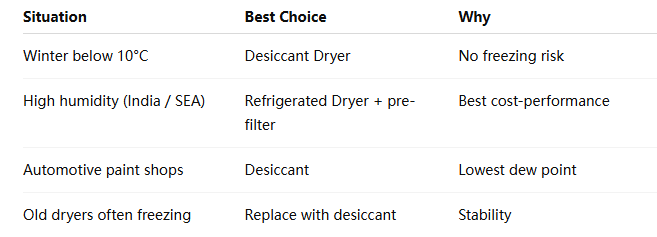

9.Quick Buyer Guide: Refrigerated vs Desiccant Dryers (Winter Edition)

How to efficiently select the right air compressor for your environment？

conclusion:
